Piezo SHOCK Show #16: How can you calculate the voltage generated on a piezo bender with FEA?

Husain Shekhani • September 4, 2021

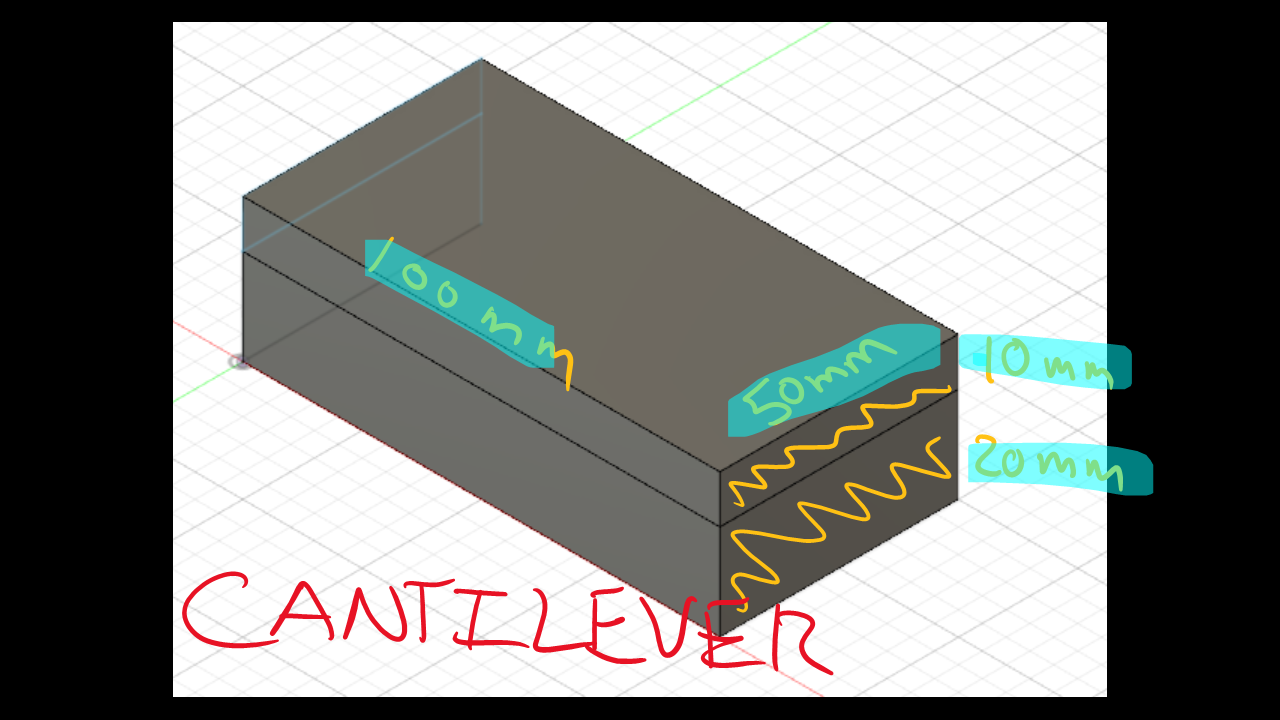

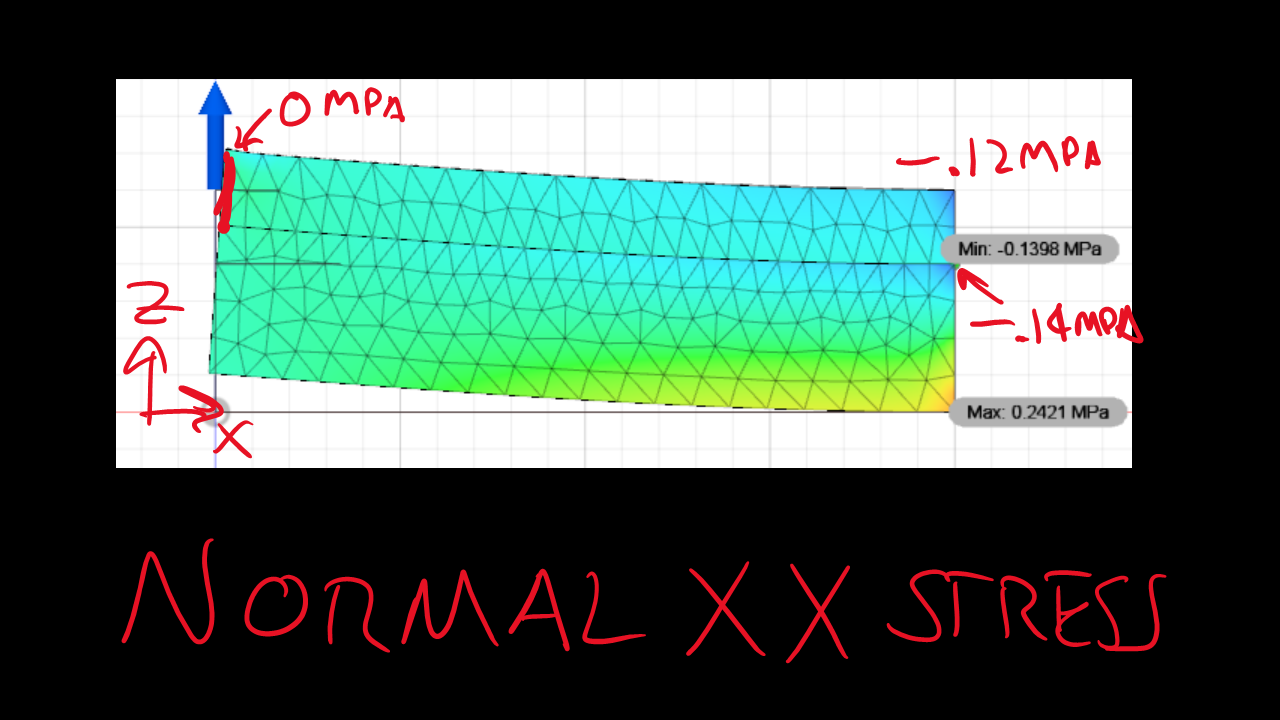

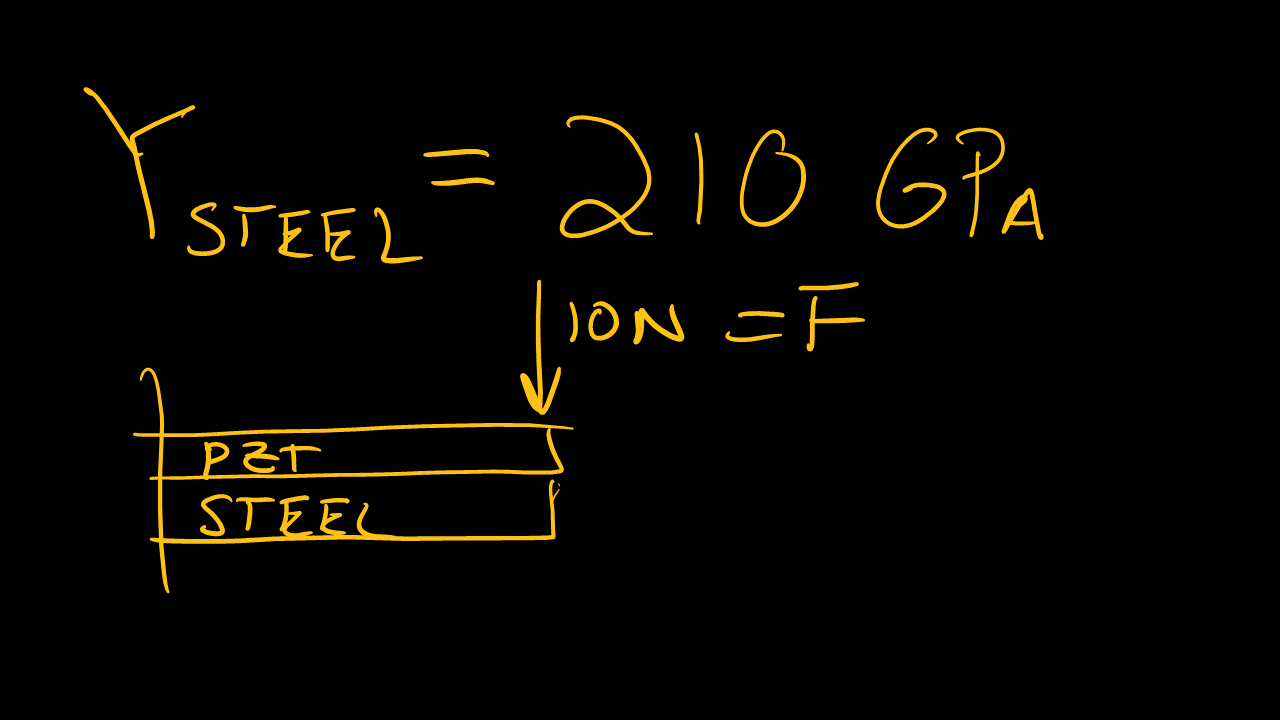

Welcome to the Piezo SHOCK Show #16. Piezo benders work quite well for generating decent voltages from small forces. In this video, I describe how to calculate voltage on a piezo from bending stresses calculated from FEA, specifically a Fusion 360 simulation. In the example, 81 volts were generated from 10 N of force.


Watch the episode here: https://youtu.be/5_rMhCQYPE4

Learn more about my paid consulting services and a free discovery call here: LINK


I've posted the video notes below:
