Piezo SHOCK Show #54: What is the driver circuit of an ultrasonic dental transducer?

Husain Shekhani • December 29, 2021

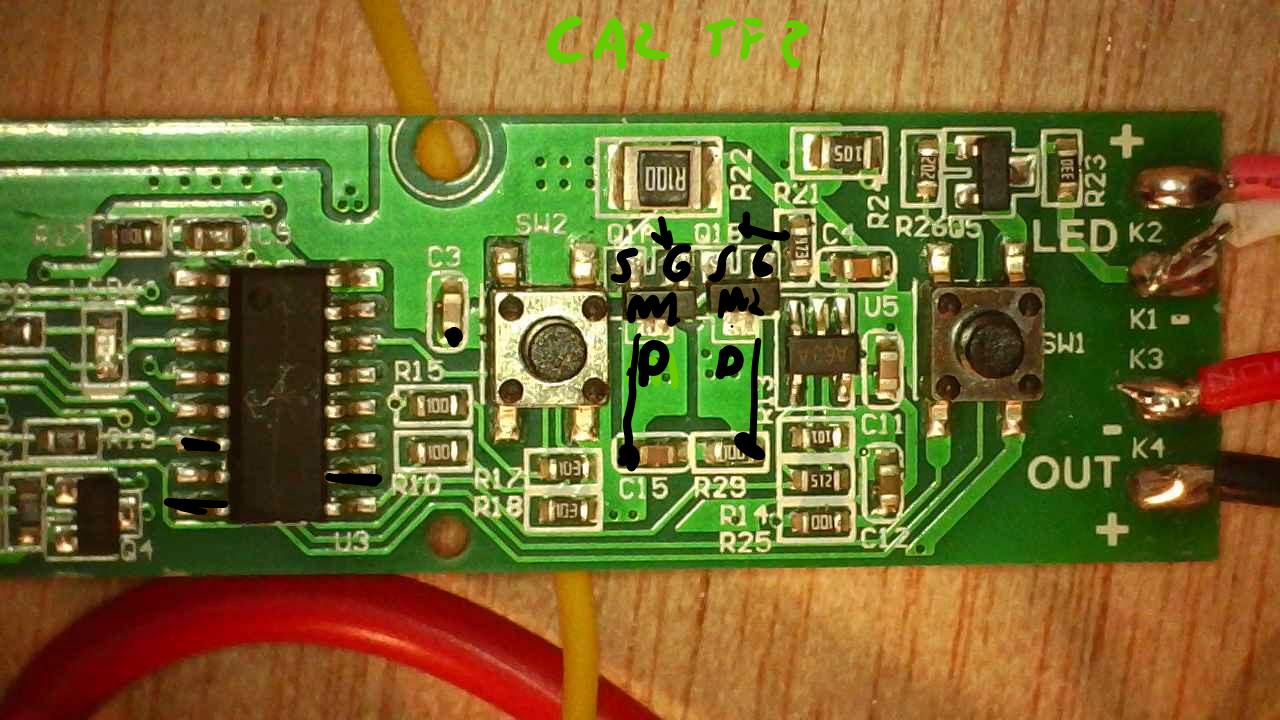

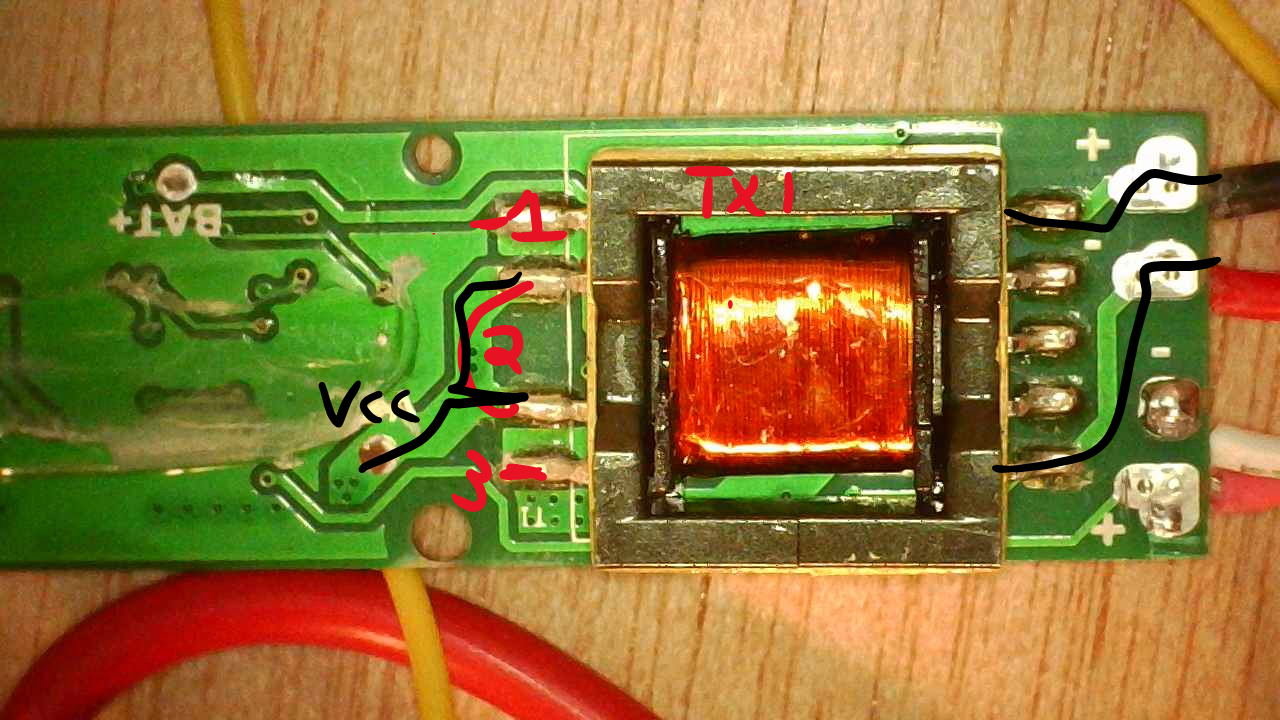

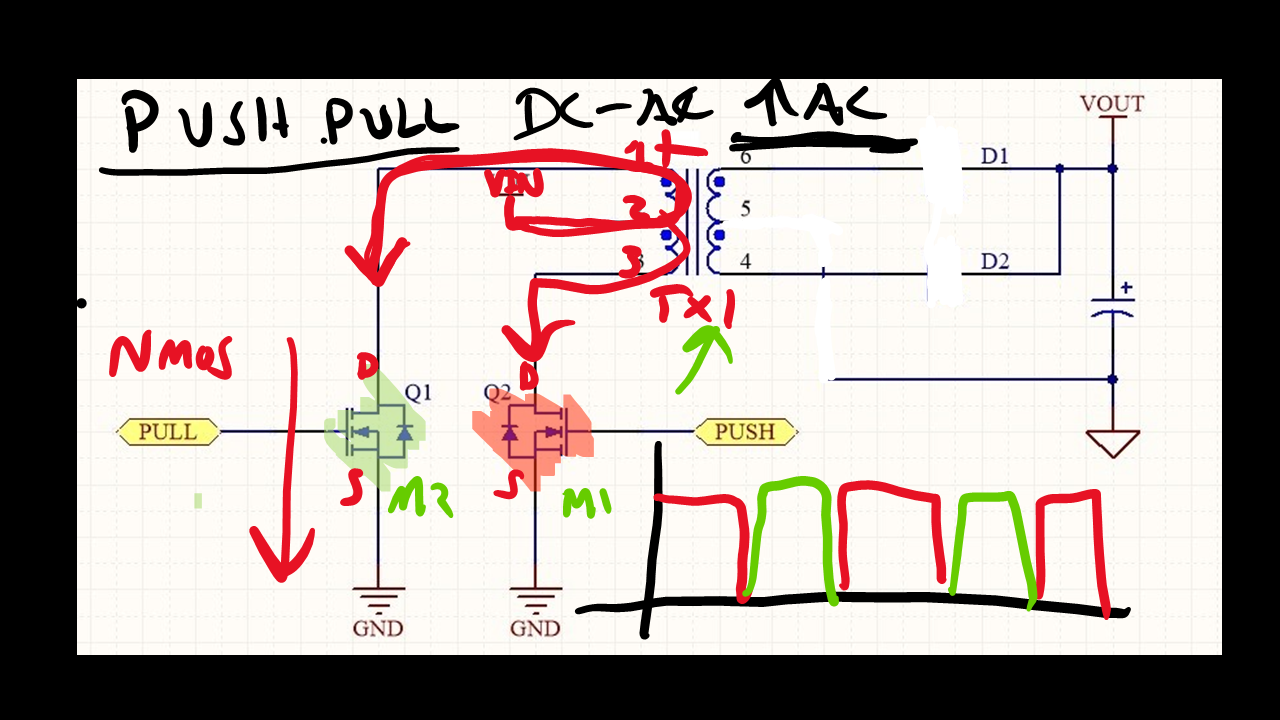

Welcome to the Piezo SHOCK Show #54. What is the driver circuit of an ultrasonic dental transducer? It is a push-pull converter circuit. It uses two NMOS FETs and a DC source and a center tapped transformer. Learn MORE and and WATCH this video.

Watch the episode here: https://youtu.be/3ezoGc-bOQ4

Learn more about my paid consulting services and a free discovery call here: LINK


I've posted the video notes below:
